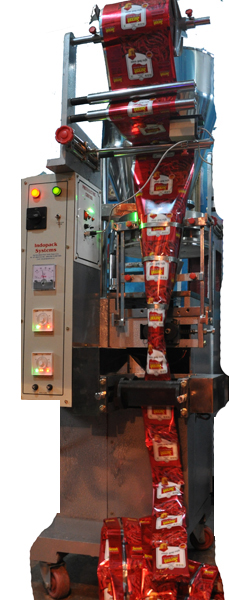

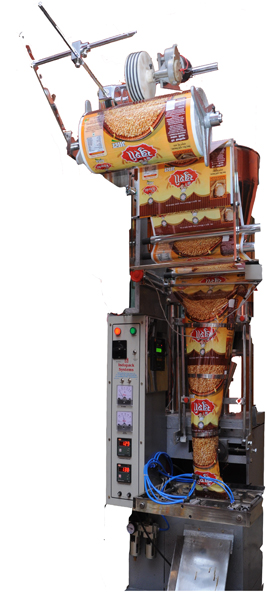

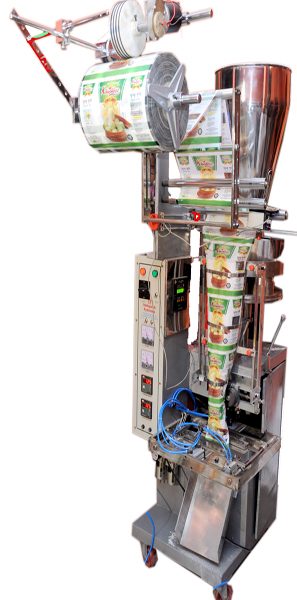

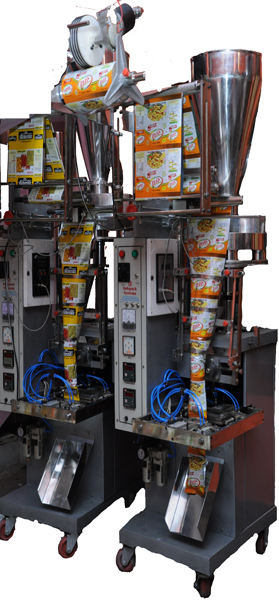

Highly suitable for powder and granular materials. The machine is absolutly fit for packing of materials such as Powder, Ground Spices, Pan Masala, Tobacco, Mehandi, Coffee Powder/Granules, Beetle Nuts, Churan etc. with a Photi Cell apparatus.
|
Specifications
|
Sealing Type
Packing Size
Packing Range
Speed
Packing Materials
Accuracy
Motor
Heater Load
Dimension
Weight
Optionals
|
3 Side/4 Side/Center (On Requirement)
L: 20-200 mm (Film Length)
W: 50-320 mm (Film Width)
(Enlarge type can be made on order)
1gm - 100gm
Depending upon specific gravity of the item to be packed
30-40 bags/min
Depending upon the flow rate of the material to be packed
Anyheat sealable laminated film such as Polyster/Poly, Paper/Poly, Paper/Poly/
Glassine/Poly, Polyster/Polyster/Poly, Polyster/Foil/Poly, BOPP/Foil/Poly etc.
Upto 200gms +- 2%
Upto 500gms +- 1.5%
1/2 HP, 220 V Single Phase, 50 Hz
3 Side Sealing/Center Sealing : (150 W X 2 Nos), (300 W X 2 Nos),
4 Side Sealing : 300 W X 4 Nos
(H)1750mm X (W)600mm X (L)700mm
450 Kg (Approx)
Coding Device, Gas Flushing Arrangement,
Level Sensor Device, Batch cutting Device
|
|
|
